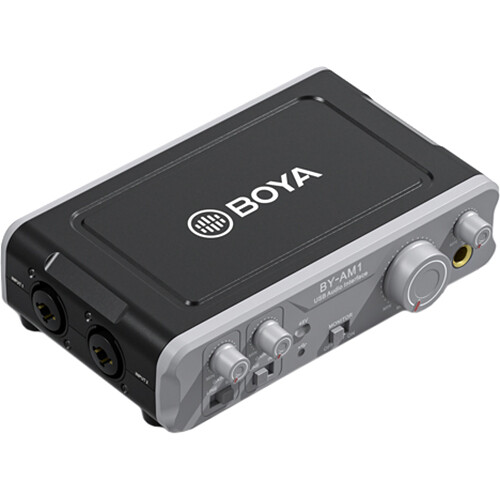

Designed for people who need a quality recording interface on a budget, the Boya AM-1 Dual-Channel USB 2 Audio Mixer is a dual-channel interface and mixer that provides both 1/4" and XLR connections for a variety of sources, including microphones and line-level instruments. Using this interface, which connects to your computer over USB, you can record audio to your computer, where you can edit or mix it later in your favorite software. This device works for home-recording music and podcasts.
1/4" and XLR Connections
The BY-AM1 provides you with a compact audio recording solution for 1/4" line-in devices, instruments, or XLR microphones, thanks to its combination XLR-1/4" inputs.
High Sample-Rate Support
The device can support a 44.1 to 192 kHz sampling rate, making it suitable for a wide range of recording applications, from CD quality (44.1 kHz) to broadcast standards (48 kHz) to high-res recording (96 kHz).
48V Phantom-Power Support
This interface can provide 48V phantom power for condenser microphones. The power comes from your host device.
Live Monitoring
Thanks to the 1/4" headphone monitor jack and supplied 3.5mm to 1/4" adapter, you can listen to your live input signal with no distracting echo or latency.
Attach to Your Other Accessories
A built-in 1/4" mounting screw on the base can be attached to tripod and other accessories.
| Form Factor | Tabletop |
| Display | None |
| Channels of I/O | 2 Input / 2 Output |
| Max Sample Rate/Resolution | 192 kHz / 16-Bit |
| Number of Mic Preamps | 2 |
| Input Level Adjustment | 2 x Knob |
| Expansion Slots | None |
Signal Processing
| Pad | None |
| Gain/Trim Range | Line Inputs: 50 dB |
| High-Pass Filter | None |
| Solo/Mute | None |
Connectivity
| Analog Audio I/O | 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 2 x 1/4" TRS Line Output |
| Phantom Power | 48 V |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB Type-B (Class-Compliant USB 2.0) |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
| Wireless Connectivity | None |
Performance
| Frequency Response | 20 Hz to 20 kHz |
| Max Input Level | Mic Inputs: 9 dBu (Min Gain) Line Inputs: 15 dBu (Min Gain) Hi-Z Inputs: 8 dBu (Min Gain) |
| Max Output Level | Headphone Outputs: 6 dBu Line/Monitor Outputs: 10 dBu |
| Impedance | Line Inputs: 47 Kilohms Headphone Outputs: < 10 Kilohms Line/Monitor Outputs: 470 Ohms |
| SNR | Line Inputs: 80 dBu Headphone Outputs: 75 dB Line/Monitor Outputs: 80 dBu |
| THD | Line Inputs: < 0.01% Headphone Outputs: < 0.01% Line/Monitor Outputs: < 0.01% |
Digital Audio
| Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Sample Rate Conversion | None |
| Latency | Zero-Latency Direct Monitoring |
| Sync Sources | None |
Audio Storage & Playback
| Memory Card Slot | None |
Compatibility
| OS Compatibility | Windows macOS |
| Included Software | None |
| Included Plug-Ins | None |
| Supported Drivers/API & Plug-Ins | macOS Class-Compliant (No Driver Needed) Windows Driver Downloadable from Manufacturer |
| Mobile Device Compatibility | None |
| Required Hardware | USB 2.0 Port USB Cable (Included) |
Power
| Power Requirements | USB Bus Power |
Physical
| Dimensions | 6.3 x 4.1 x 1.6" / 160 x 105 x 41.5 mm |
| Weight | 14.4 oz / 408.5 g |
-
